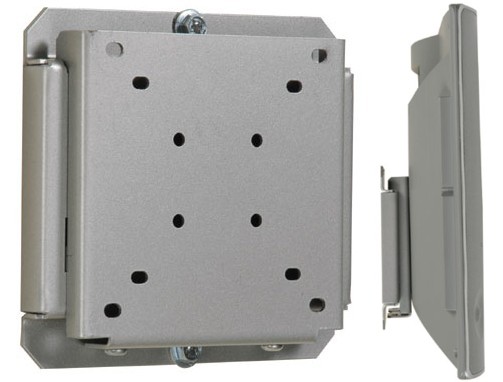

SF630 SmartMount Universal
Flat Mount 10"-40" Screens
TECHNICAL DATA SHEET
  • Mounts to a single wood stud, concrete, cinder block, or metal stud (with accessory metal stud
    fasteners)
  • Universal mount fits virtually any 10" to 40" flat panel screen
  • Screen adapter plates included compatible with VESA 75mm and 100mm mounting patterns,
    non-VESA adapter plates also available (sold separately)
  • Comes in silver or black
  • Ultra-slim design holds screen less than an inch away from the wall
  • Screen adapter plate simply hooks onto the wall plate for quick and easy installation
  • Includes hardware for installation to wood studs, concrete, and cinder block
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 80 lbs; Ship Weight: 2.2 lbs

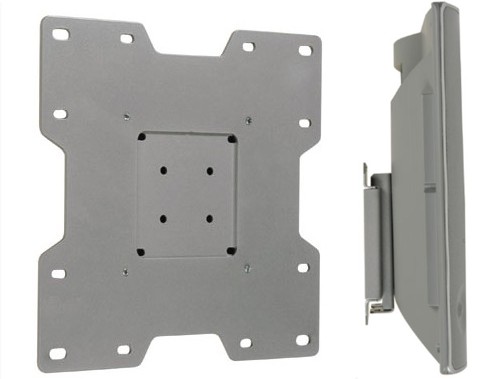

SF635 SmartMount Universal
Flat Mount 10"-42" Screens
TECHNICAL DATA SHEET
  • Mounts to single wood stud, concrete, cinder block or metal stud (with accessory metal stud
    fasteners)
  • Universal mount fits virtually any 10" to 42" flat panel screen
  • Screen adapter plates included are compatible with VESA 75mm, 100mm, 200mm, and 200mm
    x 200mm mounting patterns, non-VESA adapter plates also available (sold separately)
  • Comes in silver or black
  • Ultra-slim design holds screen an inch away from the wall
  • Screen adapter plate simply hooks onto the wall plate for quick and easy installation
  • Includes hardware for installation to wood studs, concrete and cinder block
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 115 lbs; Ship Weight: 4 lbs

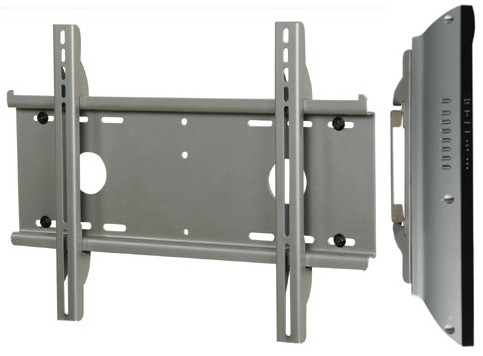

SF640 SmartMount Universal Flat
Mount 22"-49" Screens
TECHNICAL DATA SHEET
  • Mounts to one or two wood studs up to 16" apart, concrete, cinder block or two metal studs (with
    accessory metal stud fasteners)
  • Universal mount fits virtually any 22" to 49" LCD and PLASMA flat panel screen
  • Comes in silver or black
  • Slim design holds screen close-up, against the wall (1.18")
  • Screen simply hooks onto the wall plate for quick and easy installation
  • Optional horizontal adjustment of up to 6" (depending on screen model)
  • Includes hardware for installation to wood studs, concrete and cinder block
  • Comes with Peerless’ complete Sorted-For-You baffle pack with all screen hardware included
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 150 lbs; Ship Weight: 5.6 lbs

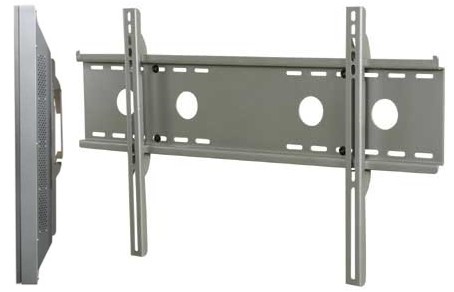

SF660 SmartMount Universal Flat
Mount 32"-63" Screens
TECHNICAL DATA SHEET
  • Mounts to one or two wood studs up to 24" apart, concrete, cinder block or two metal studs (with
    accessory metal stud fasteners)
  • Comes in silver or black
  • Universal mount fits virtually any 32" to 63" LCD and PLASMA flat panel screen
  • Slim design holds the screen close up against the wall (1.18")
  • Comes with additional brackets to accommodate screens with a built-in curve or component box
    on the back
  • Screen simply hooks onto the wall plate for quick and easy installation
  • Optional horizontal adjustment of up to 12" (depending on screen model)
  • Includes hardware for installation to wood studs, concrete and cinder block
  • Screen-specific models also available
  • Comes with Peerless’ complete Sorted-For-You baffle pack with all screen hardware included
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 200 lbs; Ship Weight: 11.36 lbs

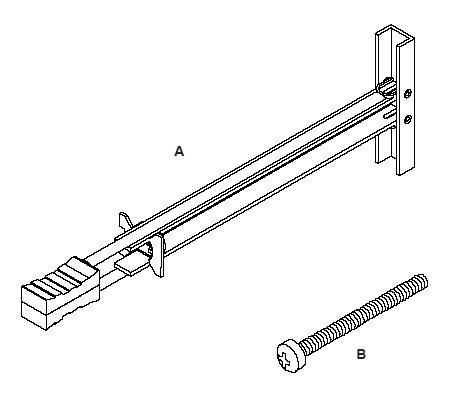

ACC215/415 Metal Stud
Fastener Kit
The metal stud togglers are recommended for mounting Peerless Wall Mounts to metal studs

MODEL: ACC215 (two togglers for SF630, SF635)          SHIP WEIGHT: .19 lbs (.09 kg)

MODEL: ACC415 (four togglers for SF640, SF660)         SHIP WEIGHT: .32 lbs (.15 kg)

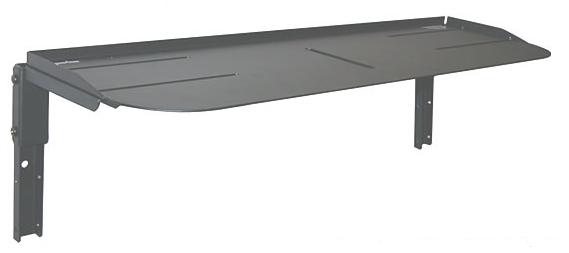

ACC309 Video Conferencing Shelf
This 24.6" L x 7.8" W shelf mounts directly to the wall to install above or below your flat panel
screen. Includes hardware for wood studs
SHIP WEIGHT: 6 lbs (2.7 kg)        MAX LOAD: 25 lbs (11.3 kg)
TECHNICAL DATA SHEET

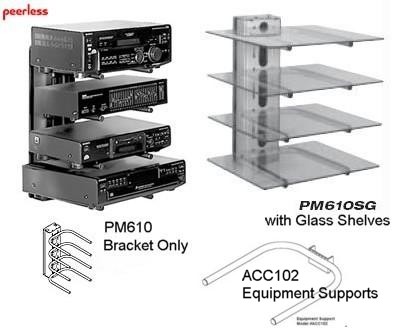

PM610 Electronics Tower(bracket
only); PM610G with Glass Shelves;
ACC102 Equipment Supports
TECHNICAL DATA SHEET
The electronics tower is designed to support up to four pieces of audio and/or video equipment
neatly on the wall. This space saving wall mount is ideal for office or home theater applications.
Ideal for placement beneath flat panel screen or monitor.
  • Comes in black, silver, or white
  • Four equipment supports with adhesive foam pads to protect electronic components
  • Choice of seven equipment support positions at 3" (76 mm.) increments
  • Cord management
  • Heavy-duty steel construction
  • Includes fasteners for wood stud or wood beam mounting applications
  • MAX LOAD: Wood Stud: 60 lbs (27.21 kg) /15 lbs for each equipment support; Concrete:
    60 lbs (27.21 kg) /15 lbs for each equipment support
  • SHIP WEIGHT: PM610 22.7 lbs; PM610G 52 lbs
ACC102 Equipment Supports: these supports can be added to the electronics tower for extra
equipment. Product includes foam pads.
MAX LOAD: 15 lbs (6.8 kg)          SHIP WEIGHT: 3 lbs (1.4 kg)

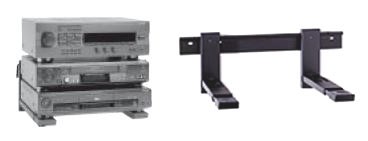

PM600 Multi Mount
TECHNICAL DATA SHEET
This space saving wall mount is ideal for stacking audio and video equipment, such as DVD players,
receivers, CD players and more.
     MAX LOAD: 100 lbs (45 kg)
        SHIP. WEIGHT: 9 lbs (4 kg)
