Peerless > TV Mount & Swivel

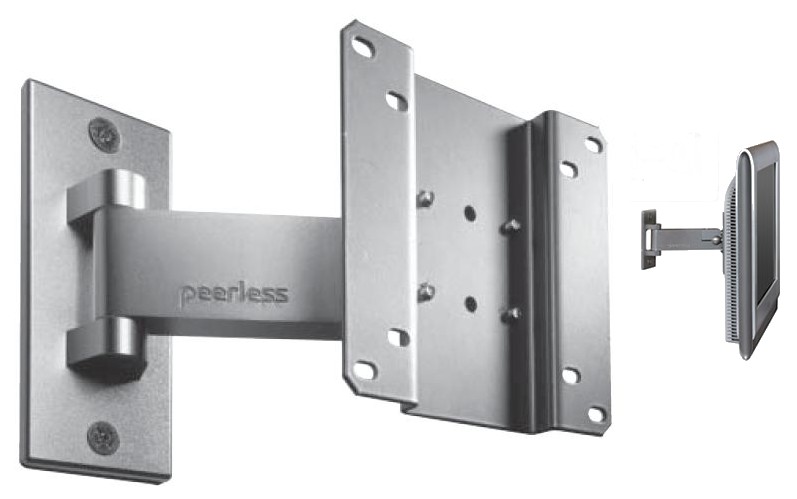

SP730P  Long Pivot Wall Mount
for 10"-22" LCD Screens
TECHNICAL DATA SHEET
  • Mounts to single wood stud, concrete, cinder block or metal stud (with accessory metal stud
    fasteners)
  • Fits 10"-22" LCD screens
  • Arm extends up to 6" from wall or folds flat to save space
  • Provides full side-to-side pivot at the wall plate
  • Features ball joint at the screen for additional side-to-side swivel and upward/downward tilt
  • Supports screens with VESA® 75 or 100 mounting holes
  • Comes in black or silver
  • Offers 70° (±35°) of upward and downward tilt
  • Offers between 60° (±30°) and 160° (±80°) of additional side-to-side swivel at the ball joint
    (exact swivel range is determined by the size of the screen)
  • Includes hardware for installation to wood stud, metal stud and concrete
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 25 lbs; Ship Weight: 2.2 lbs

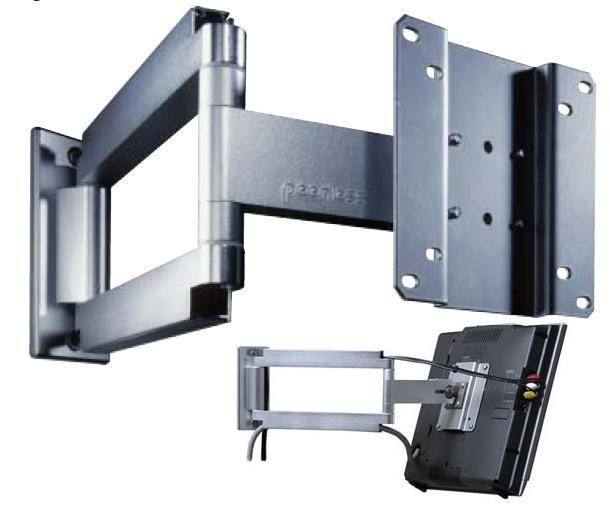

SA730P  Articulating Wall Arm
for 10"-22" LCD Screens
TECHNICAL DATA SHEET
  • Mounts to single wood stud, concrete, cinder block or metal stud (with accessory metal stud
    fasteners)
  • Fits 10"-22" LCD screens
  • Arms extends up to 15" from the wall or folds flat to save space
  • Comes with VESA® 75/100 screen adapter plate
  • Comes in black or silver
  • Smooth anodized aluminum finish
  • Three pivot points for extensive adjustment of viewing angle
  • Ball joint design at screen for easy side-to-side movement and +/-35° of tilt
  • Offers up to 180° of swivel
  • Built-in internal cord management channels keep wires out of the way
  • Includes hardware for installation to a single wood stud or concrete
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 25 lbs; Ship Weight: 3 lbs

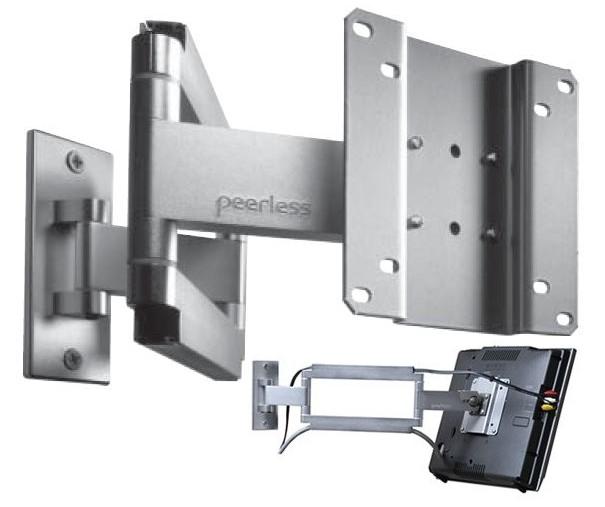

SAL730P SmartMount Extended
Reach Articulating Wall Arm for
10"-22" LCD Screens
TECHNICAL DATA SHEET
  • Arm extends up to 18.25" from the wall or folds flat to save space • Four pivot points for
    maximized adjustment of viewing angle
  • Comes with VESA® 75/100 screen adapter plate
  • Non-VESA screen adapter plates sold separately
  • Ball joint design at screen for easy side-to-side movement and +/-35° of tilt
  • Offers 180° of swivel on a wall and up to 270° of swivel around the side of a cabinet or corner
  • Built-in internal cord management channels keep wires out of the way
  • Comes in black or silver
  • Includes hardware for installation to the side of a cabinet and to a single wood stud or concrete
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 25 lbs; Ship Weight: 4 lbs

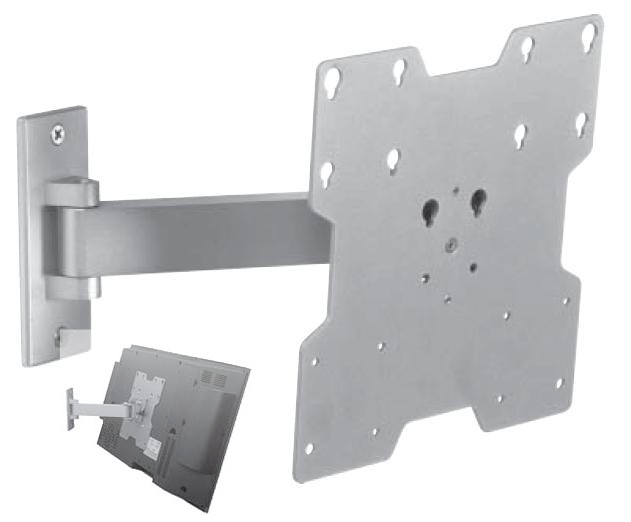

SP740P SmartMount Pivot Wall
Arm for 22"-37" LCD Screens
TECHNICAL DATA SHEET
  • Arm extends from wall up to 10" or folds flat to save space
  • Two tensionable pivot points for extensive adjustment of viewing angle
  • Compatible with screens that have VESA 100mm/200mm/200mm x 200mm mounting hole
    patterns
  • Non-VESA screen adapter plates also available (sold separately)
  • Smooth anodized aluminum finish
  • One-touch, continuous tilt
  • Comes in black or silver
  • Includes hardware for installation to a single wood stud or concrete
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 80 lbs; Ship Weight: 5.40 lbs

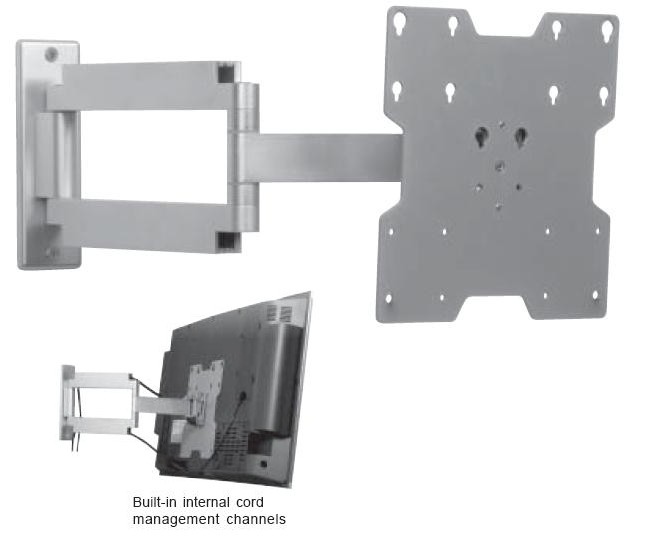

SA740P SmartMount Articulating
Wall Arm for 22"-37" LCD Screens
TECHNICAL DATA SHEET
  • Arm extends from wall up to 20" or folds flat to save space
  • Three tensionable pivot points for extensive adjustment of viewing angle
  • Supports screens with VESA 100mm/200mm/200mm x200mm mounting hole patterns
  • Non-VESA screen adapter plates also available (sold separately)
  • One-touch, continuous tilt
  • Offers 7° of roll adjustment for easy screen leveling
  • Built-in internal cord management channels keep wires out of the way
  • Comes in black or silver
  • Includes hardware for installation to a single wood stud or concrete
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 80 lbs; Ship Weight: 8.4lbs

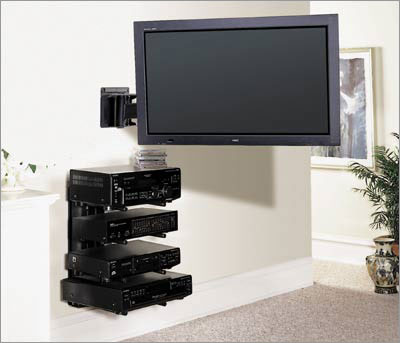

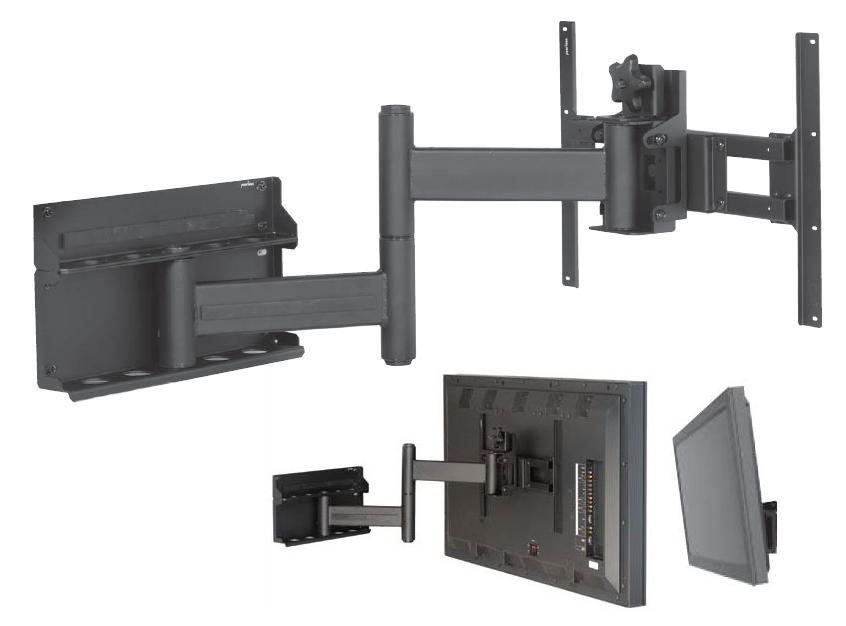

PLA-1 Articulating Swivel Wall
Mount for 32" to 61" Flat Panel
Screens
TECHNICAL DATA SHEET
The Articulating Swivel Mount extends, swivels and tilts to provide multiple viewing options. It is ideal
for commercial, educational and home theater applications. Mount the PLA-1 in a recessed wall or
anywhere full mobility is needed. When retracted, the screen sits almost flush against the wall or the
articulating arm can be extended to a maximum of 30.5". Three pivot points on the arm allow 180°
swivel to create limitless viewing positions. Peerless’ exclusive manual leveling adjustment keeps the
screen level (no tools required; a must-have for recessed installations where a screen that is not
perfectly level is very noticeable). The 18" wall plate mounts to two studs with 16" centers (fasteners
for wood stud included) or mounts to solid concrete or concrete block with appropriate fasteners (sold
separately). Model-specific or Universal style PLP adapter plates are available to match your screen
make and model, both are sold separately.

  • Comes in black or silver
  • Articulating arm can be attached at the center of the wall plate or at four other points off-center
  • Arm extends up to 30.5" (77.5 cm) away from wall for perfect viewing
  • Three point swivel action at the wall plate, screen and center
  • Adjustable screen tilt with a maximum 10° forward and 5° backward
  • Mount allows for leveling adjustment for the screen to sit level at any angle; no tools required
  • Screen mounts vertically or horizontally
  • Theft-resistant security fasteners secure the screen to the mount
  • Heavy gauge cold rolled steel construction
  • Compatible with video conferencing shelf
  • Includes hardware for wood stud mounting
  • Complete detailed installation instructions for wood and concrete structures
  • Max Load: 185 lbs; Ship Weight: 34.9 lbs

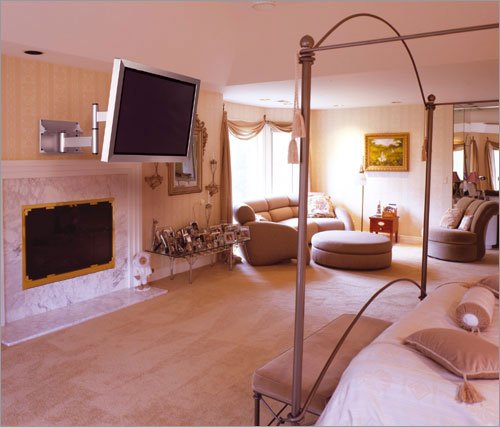

PLA-2 Articulating Wall Mount for
26"-40" Flat Panel Screens
TECHNICAL DATA SHEET
The PLA-2 and PLA-2S allows multiple viewing positions within the same room. When retracted, the
screen sits almost flush against the wall or the articulating arm can be extended to maximum of
28.87" (733 mm) from the wall. Three pivot points on the arm with 180° swivel create limitless
viewing positions. 18" wall plate mounts to two studs with 16" centers. Can be mounted to wood
studs, solid concrete or cinder block with appropriate fasteners.

  • For use with LCD & Plasma screens up to 90 lbs
  • Arm extends up to 28.87" (733 mm) away from wall
  • Three point swivel action
  • Adjustable screen tilt with a max. 5° forward, 0° backward
  • Folds flat against wall to save space
  • Wire management contains and protects cords
  • Screen mounts in landscape orientation
  • Mount allows for leveling adjustment of flat panel to sit level at any angle; no tools required
  • Can be mounted to wood studs, solid concrete or cinder block
  • Screw covers hide wall mounting hardware
  • Heavy gauge cold rolled steel construction
  • Scratch resistant black or silver fused epoxy finish
  • Max Load: 90 lbs; Ship Weight: 26 lbs

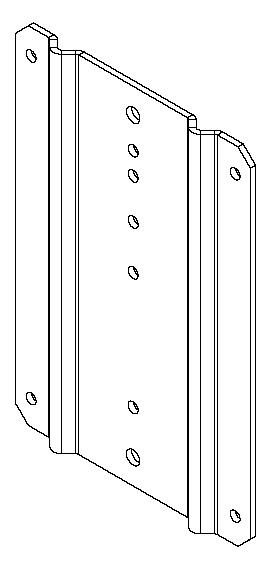

This wall kit is used for LS100, SA730, and SAL730 model LCD screen mounts when mounting to metal stud. Includes
fasteners to attach mount to plate and plate to metal stud wall.

  MAX LOAD: 25 lbs (11.3 kg)          COLOR: Silver

An external wall plate that is designed for use on 25 gauge or heavier metal studs to safely span the load between
three studs. Compatible with PLA-1 and PLA-2 models. Includes togglers for attachment to studs and screws for
attachment of wall mount to plate. Offered in black or white for studs with 16", 20" or 24" centers. Models come
with pre-scored electrical knockouts.
MAX LOAD: 175 lbs (79.3 kg)
WSP450 to centers: 16"         WSP460 to centers: 20"        WSP470 to centers: 24"

For LCWL, SA740, and SP740 only. This external wall plate is designed for use on 25 gauge or heavier metal
studs to safely span the load between two studs with 16", 20", or 24" centers. Includes togglers for attachment to
metal studs and screws to attach wall mount to plate. Offered in black or white, with or without electrical
knockouts. Can also be used on wood studs.
  MAX LOAD: 50 lbs (22.7 kg)
  WSP480 to centers: 16"         WSP485 to centers: 16", 20", 24"

Used for attachment of Peerless Plasma mounts to concrete, concrete block or brick. Used with wood screws
supplied by Peerless. The anchor expands in length and binds to the contours of the hole and the screw. This
fastener is the preferred choice by Peerless, and recommended throughout the catalog, for its superior
performance in all types of concrete structures. Concrete Expansion Anchors, ACC 200, 205 and 210, are also
available from Peerless for mounting into concrete or brick.
MODEL: ACC204 (four anchors) SHIP WEIGHT: 1 lbs (.5 kg)
