Peerless > TV Mount & Swivel

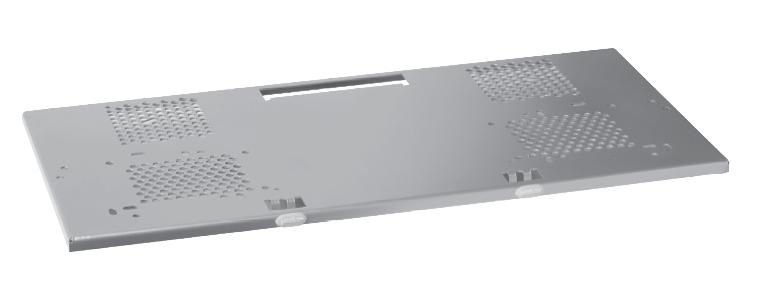

Peerless LDS Series L Universal
Desktop Swivel Mount for 19"-32"
CRT TVs
The Universal Desktop Swivel Mount is designed for convenient viewing from any angle in the room.
The mount may be attached to desktops, cabinets, or the surface of any furniture capable of carrying
a static load equal to four times the combined weight of monitor and mount. The swivel base is
designed with smooth ball-bearing action for easy adjustment and can be restricted if desired to
prevent excess movement from users. All models feature theft deterrent security fasteners and offer
one-piece design for fast, simple installation.

   • One piece design ensures fast, simple installation
   • Universal hole pattern fits most screens
   • Swivel can be 360° or restricted to 30°, 60° or 90°
   • Theft resistant security fasteners secure screen to the mount
   • Heavy duty steel construction
   • Scratch resistant black or silver fused epoxy finish
   • Cover plates conceal location of security fasteners
Model
 CRT TV Size
 Security
 W-Tray Width
 D-Tray Depth
 Max. Load
 Ship Weight
LDS1920U
 19"-20"
 Yes
 19.5"
 12.88"
 125 lbs
 10.6 lbs
LDS1920U-S
 19"-20"
 Yes
 19.5"
 12.88"
 125 lbs
 10.6 lbs
LDS2527U
 25" - 27"
 Yes
 25"
 12.9"
 125 lbs
 11.4 lbs
LDS2527U-S
 25" - 27"
 Yes
 25"
 12.9"
 125 lbs
 11.4 lbs
LDS32U
 32"
 Yes
 26"
 12.9"
 150 lbs
 13.7 lbs
LDS32U-S
 32"
 Yes
 26"
 12.9"
 150 lbs
 13.7 lbs

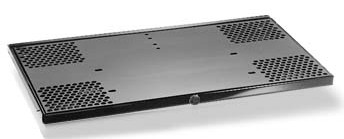

LDS Series Universal Desktop
Swivel Mount for 9-27" TV with
Security Keylock
Designed for convenient viewing from any angle in the room, the TV swivel mounts may be attached to
desktops, cabinets or the surface of any furniture capable of carrying a static load equal to four times the
combined weight of monitor and mount. All models feature two-piece randomly perforated trays, with
security provided by a key lock. The 360° swivel can be restricted if desired.
 • Security key lock  • 360° swivel  • All-steel construction
 • Color: Black
Model
 Monitor Size
 Security
 W-Tray Width
 D-Tray Depth
 Max. Load
 Ship Weight
LDS310
 9"-13"
 Keylock
 10.75"
 11.5"
 125 lbs
 7 lbs
LDS314
 13"-16"
 Keylock
 13.0"
 12"
 125 lbs
 8 lbs
LDS334
 19" & 20"
 Keylock
 17"
 12"
 125 lbs
 10 lbs
LDS354
 19" & 20"
 Keylock
 20"
 11"
 125 lbs
 13 lbs
LDS530
 19" & 20"
 Keylock
 22"
 13"
 125 lbs
 15 lbs
LDS375
 25" & 27"
 Keylock
 24"
 15"
 125 lbs
 19 lbs

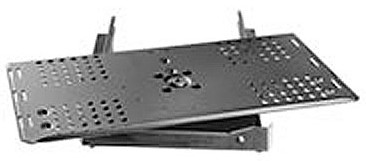

LSS Series Slideout Swivel Mount
for 19-27" TVs with Security
Keylock
Desktop swivel mounts are available with slide-out mounting rails for use in armoires and cabinets.
Three slide out lengths plus three swivel restriction options ensure the optimum viewing position. Unit
can be retracted when not in use. Models available in standard or two-piece tray security versions (with
key lock.)
 • Security key lock (selected models)
 • Three swivel restriction options (30°, 60°, 90°)
 • Three slide-out restriction options: 3", 6", 9" (7.6, 15.2, 22.9 cm)
 • Color: Black
Model
 Monitor Size
 Security
 W-Tray Width
 D-Tray Depth
 Max. Load
 Ship Weight
LSS354
 19"-20"
 Keylock
 20"
 11"
 125 lbs
 19.4 lbs
LSS375
 25"-27"
 Keylock
 24"
 15"
 125 lbs
 25.4 lbs
LSS530
 19"- 20"
 Keylock
 22"
 13"
 125 lbs
 18.9 lbs
CSS013
 9" - 13"
 No
 14"
 10"
 125 lbs
 12 lbs
CSS020
 19" - 20"
 No
 20"
 10"
 125 lbs
 12 lbs
