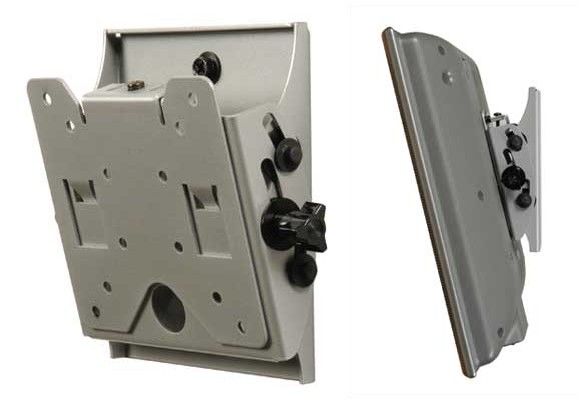

ST630 SmartMount Universal Tilt
Wall Mount for 10"-30" Screens
TECHNICAL DATA SHEET
  • Mounts to single wood stud, concrete,cinder block or metal stud (with accessory metal stud
    fasteners)
  • Universal mount fits virtually any 10" to 30" flat panel screen
  • Screen adapter plate compatible with VESA 75mm and 100mm
  • Comes in silver or black
  • One-touch tilt allows tilt adjustment of +15/-5 degrees without the use of tools
  • Tilt can be tightened in place if needed
  • Screen adapter plate simply hooks onto the wall plate for quick and easy installation
  • Includes hardware for installation to single wood stud, concrete and cinder block
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 80 lbs; Ship Weight: 2.65 lbs

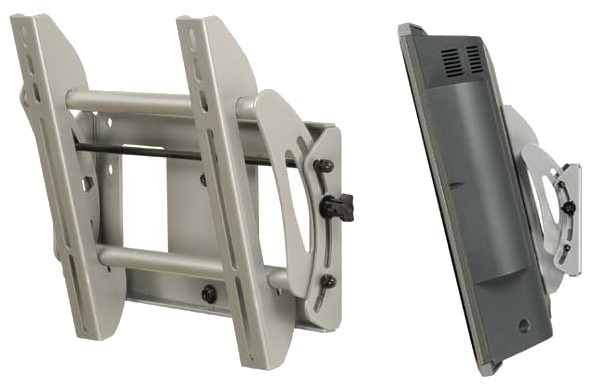

ST635 SmartMount Universal Tilt
Wall Mount for 13"-42" Screens
TECHNICAL DATA SHEET
  • Mounts to single wood stud, concrete,cinder block or metal stud (with accessory metal stud
    fasteners)
  • Universal mount fits virtually any 13" to 42" flat panel screen
  • Screen adapter brackets included compatible with VESA 75mm, 100mm,200mm and 200mm x
    200mm mounting hole patterns
  • Comes in silver or black
  • One-touch tilt allows tilt adjustment of +15/-5 degrees without the use of tools
  • Tilt can be tightened in place if needed
  • Screen adapter brackets simply hook onto the wall plate for quick and easy installation
  • Includes hardware for installation to single wood stud, concrete and cinder block
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 115 lbs; Ship Weight: 6.75 lbs

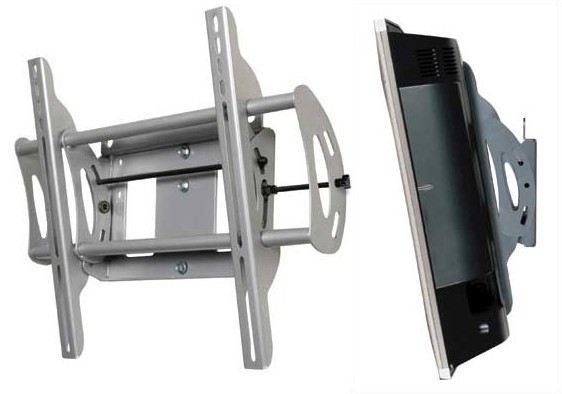

ST640 SmartMount Universal Tilt
Wall Mount for 22"-49" Screens
TECHNICAL DATA SHEET
  • Mounts to single wood stud, concrete or to single metal stud (with accessory metal stud
    fasteners)
  • For virtually all 22" to 49" flat panel screens
  • Universal brackets easily hook onto the mount bars for fast and easy installation
  • Comes in silver or black
  • Adjustable tilt +15/-5 degree without the use of tools
  • Self-balancing, one-touch tilt for effortless adjustment
  • Tilt can be tightened in place if needed
  • Up to 6" of horizontal adjustment after the screen is mounted
  • Includes hardware for single wood stud, concrete and cinder block
  • Comes with Peerless’ complete Sorted-For-You baffle pack with all screen hardware included
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 150 lbs; Ship Weight: 10.2 lbs

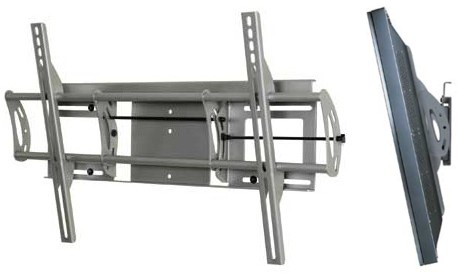

ST650 SmartMount Universal Tilt
Wall Mount for 30"-50" Screens
TECHNICAL DATA SHEET
  • Mounts to one or two wood studs, concrete, cinder block or to two metal studs (with accessory
    metal stud fasteners)
  • For virtually all 30" to 50" flat panel screens
  • Universal brackets easily hook onto the mount bars for fast and easy installation
  • Includes additional brackets to accommodate screens with a built-in curve or component box on
    the back
  • Comes in silver or black
  • Adjustable tilt +15/-5 degree without the use of tools
  • Self-balancing, one-touch tilt for effortless adjustment
  • Tilt can be tightened in place if needed
  • Up to 12" of horizontal adjustment after the screen is mounted
  • Includes hardware for wood studs, concrete and cinder block
  • Comes with Peerless’ complete Sorted-For-YouTM baffle pack with all screen hardware included
  • Screen-specific models also available
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 150 lbs; Ship Weight: 19.33 lbs

ST660 SmartMount Universal Tilt
Wall Mount for 32"-63" Screens
TECHNICAL DATA SHEET
  • Mounts to one or two wood studs, concrete, cinder block or to two metal studs (with accessory
    metal stud fasteners)
  • For virtually all 32" to 63" flat panel screens
  • Universal brackets easily hook onto the mount bars for fast installation
  • Includes additional brackets to accommodate screens with a built-in curve or component box
    on the back
  • Comes in silver or black
  • Adjustable tilt +15/-5 degree without the use of tools
  • Self-balancing, one-touch tilt for effortless adjustment
  • Tilt can be tightened in place if needed
  • Up to 12" of horizontal adjustment after the screen is mounted
  • Includes hardware for wood studs, concrete and cinder block
  • Comes with Peerless’ complete Sorted-For-You baffle pack with all screen hardware included
  • Screen-specific models also available
  • UL tested to hold four times the stated weight load capacity
  • Max Load: 200 lbs; Ship Weight: 21.10 lbs

ACC215/415 Metal Stud
Fastener Kit
The metal stud togglers are recommended for mounting Peerless Wall Mounts to metal studs

MODEL: ACC215 (two togglers for ST630, ST635, ST640)         SHIP WEIGHT: .19 lbs (.09 kg)

MODEL: ACC415 (four togglers for ST650, ST660)                   SHIP WEIGHT: .32 lbs (.15 kg)

ACC309 Video Conferencing Shelf
Technical Data Sheet
This 24.6" L x 7.8" W shelf mounts directly to the wall to install above or below your flat panel
screen. Includes hardware for wood studs
SHIP WEIGHT: 6 lbs (2.7 kg)        MAX LOAD: 25 lbs (11.3 kg)

PM610 Electronics Tower(bracket
only); PM610G with Glass Shelves;
ACC102 Equipment Supports
TECHNICAL DATA SHEET
The electronics tower is designed to support up to four pieces of audio and/or video equipment
neatly on the wall. This space saving wall mount is ideal for office or home theater applications.
Ideal for placement beneath flat panel screen or monitor.
  • Comes in black, silver, or white
  • Four equipment supports with adhesive foam pads to protect electronic components
  • Choice of seven equipment support positions at 3" (76 mm.) increments
  • Cord management
  • Heavy-duty steel construction
  • Includes fasteners for wood stud or wood beam mounting applications
  • MAX LOAD: Wood Stud: 60 lbs (27.21 kg) /15 lbs for each equipment support; Concrete:
    60 lbs (27.21 kg) /15 lbs for each equipment support
  • SHIP WEIGHT: PM610 22.7 lbs; PM610G 52 lbs
ACC102 Equipment Supports: these supports can be added to the electronics tower for extra
equipment. Product includes foam pads.
  MAX LOAD: 15 lbs (6.8 kg)          SHIP WEIGHT: 3 lbs (1.4 kg)

PM600 Multi Mount
TECHNICAL DATA SHEET
This space saving wall mount is ideal for stacking audio and video equipment, such as DVD players,
receivers, CD players and more.
       MAX LOAD: 100 lbs (45 kg)
        SHIP. WEIGHT: 9 lbs (4 kg)
